Grainfather G40 Brewing System
The Grainfather G40 brewing system has a bigger capacity and better connectivity. Produce up to 40L (11 US Gal) of beer from one brew and connect your mobile device to the smart controller with built-in wireless control via the Grainfather App, for step-by-step brewing and access to bazillions of recipes.
SKU: EZZZ9112
MAP: $1,499.00
The Grainfather G40 is the latest brewing system in the G Series range from Grainfather. Packed with all of the innovative features you can find in the G70, this brewing system is your new best friend for brews up to 11 gal (40L), perfect to fill two 5 gal corny kegs. With a max grain bill of 29 lb., you can choose to add extra grain and less liquid to make beer with an ABV over 9%.
Manage your brew remotely with step-by-step brewing with the smart wireless controller. All you need to do is connect your mobile device to the controller and control your brew through the FREE Grainfather app where you have access to bazillions of recipes to choose from, or create your own!
Please Note – this system comes standard with a NEMA 6-15P plug, and requires access to a 220v-240v power supply.

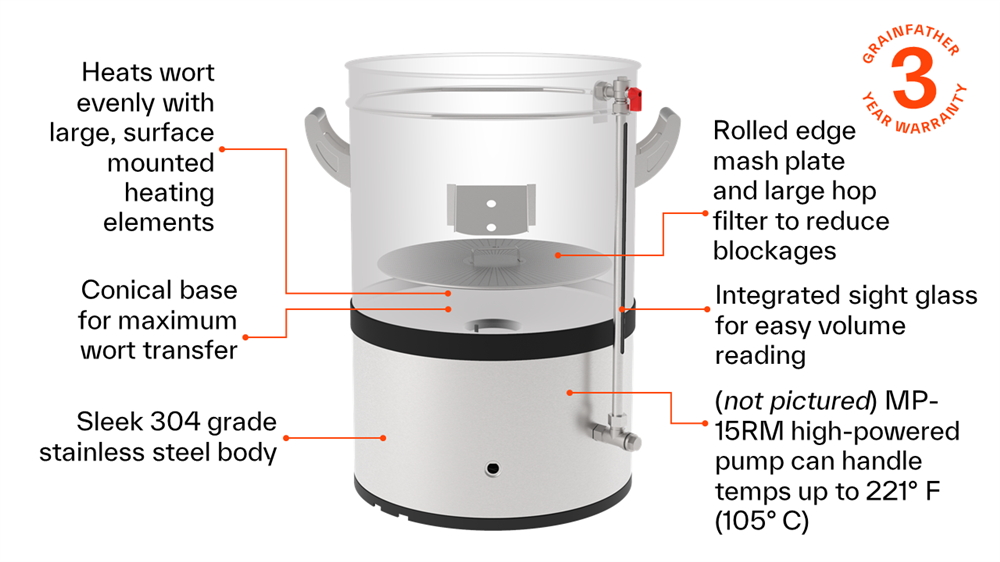

FEATURES
- G40 body built with sleek 304-grade stainless steel
- Large, surface mounted heated elements heat wort evenly
- Connect your mobile device to the smart wireless controller via the Grainfather App (link to the Grainfather app page) and manage your brew remotely. The Grainfather app gives you access to brewing tools and calculators to brew with confidence, and bazillions of recipes to choose from or create your own.
- Reach your expected gravity with a conical base for maximum wort transfer
- Comes with a counterflow wort chiller for a more efficient and sanitary brew transfer
- PID heating control for accurate temperature management during mashing
- Quick and easy cleaning with CIP (clean in place) capability
- An integrated sight glass for easy volume reading
- Rolled edge mash plate and large hop filter to reduce blockages
SUPPORT
We’re a dedicated and knowledgeable team who are passionate about helping our customers get the most out of their system. We can assist you with any brewing-related queries, no matter how technical. We’re also confident that our products will produce professional, craft brewery-like results. That’s why every G40 comes with a signature Grainfather 3-year warranty.
WHAT’S INCLUDED
- Grainfather G40
- Smart controller with built-in wireless connectivity
- Counterflow wort chiller
- Glass lid
- Lifting bar
- Inner basket
- Recirculation hose
- Grain plate
- Hop filter
- Fittings

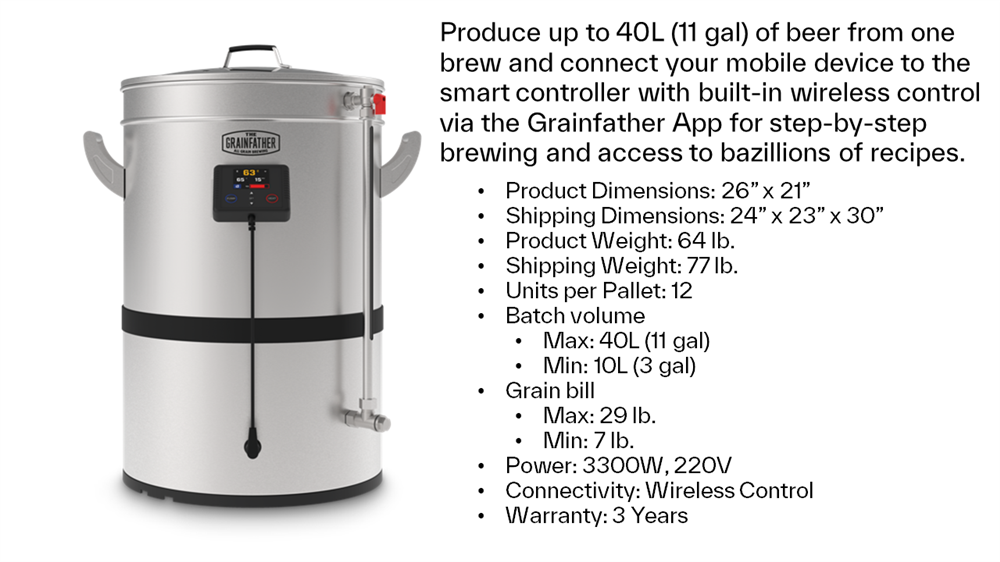

SPECS
- Size: 26″ x 21″
- Weight: 64lb
- Capacity: 12 gal
- Batch volume
- Maximum: 11 gal (40L)
- Minimum: 3 gal (10L)
- Grain bill
- Maximum: 29lb (13kg)*
- Minimum: 7lb (3kg)
- *Max weight depends on grain crush, type, and variety. Large grain bills may also require the use of an additional grain plate.”
- Power: 3300W, 240V
- Connectivity: Wireless control
Comparison Chart:
| Brewing System: | S40 | G30³ | G40 | G70² |
|---|---|---|---|---|
| SKU | EZZZ9113 | EZZZ9112 | EZZZ9176 | |
| MAP / RRP | $499 | $999 | $1,499 | $2,199 |
| Capacity (max preboil volume) | 12 gal (46L) | 8 gal (30L) | 12 gal (46L) | 18 gal (70L) |
| Batch Volume (max) | 11 gal (40L) | 6 gal (23L) | 11 gal (40L) | 16 gal (60L) |
| Maximum Grain Weight (dry) | 22 lb. | 20 lb. | 29 lb.* | 37 lb. |
| Power | 2300W, 240V |
| 3300W, 240V | 3300W, 240V |
| Boil Loss | 0.8 gal/hr | 0.8 gal/hr | 1 gal/hr | 1 gal/hr |
| Chiller | Immersion | Counterflow | Counterflow | Counterflow |
| Connectivity | None | Bluetooth | Wireless Internet | Wireless Internet |
| Pump Filter | None | Single Filter | Large Dual-Stage | Large Dual-Stage |
| Pump Heat Rating | 221°F (105°C) | 176°F (80°C) | 221°F (105°C) | 221°F (105°C) |
| Pump Max Head / Capacity | 2.4 m / 16 Lpm | 2.1 m / 12 Lpm | 3.4 m / 19 Lpm | 4.3 m / 32 Lpm |
| Steel Grade | 304 | 304 | 304 | 304 |
| Warranty | 2 years | 3 years | 3 years | 3 years |
| Programmable Step Mashing | ✔ | ✔ | ✔ | ✔ |
| Removable Grain Basket Bottom Plate | ✔ | ✔ | ✔ | |
| Delayed Heating | ✔ | ✔ | ✔ | |
| Sight Glass | ✔ | ✔ | ||
| Winchable Grain Basket | ✔ | ✔ |
Grainfather G40 Support Materials
G40 Product Tour
Shipping Notice – *PLEASE READ*
“Due to the weight and dimensions of the Grainfather G70, Grainfather G40, and Grainfather GC4 Glycol Chiller, the manufacturer has recommended that these products be shipped exclusively by palletized freight in order to prevent damage from occurring in transit.
Standard parcel shipping will not be an option for these items from RahrBSG. Unless other arrangements have been made, these products will be shipped using RahrBSG’s chosen freight services by default and will incur the standard freight fees. Customers who opt to use other shipping services, drop ship and/or use Third Party Billing, should be aware that they will be responsible for resolving any issues that may occur in transit including loss or damage with the shipping service themselves.
- Manufacturer Warranty is void on products damaged during ground shipment or delivered differently than proposed by the supplier, via palletized freight.
- Damage to freight shipped through RahrBSG by RahrBSG’s freight vendors will be covered because RahrBSG will only ship according to manufacturer requirements.
- Products shipped through a third-party vendor and damaged in transit will need to be addressed between the third-party freight vendor and you, the retailer. If not shipped through RahrBSG’s accounts with our freight vendors, RahrBSG assumes no responsibility for delivery.
